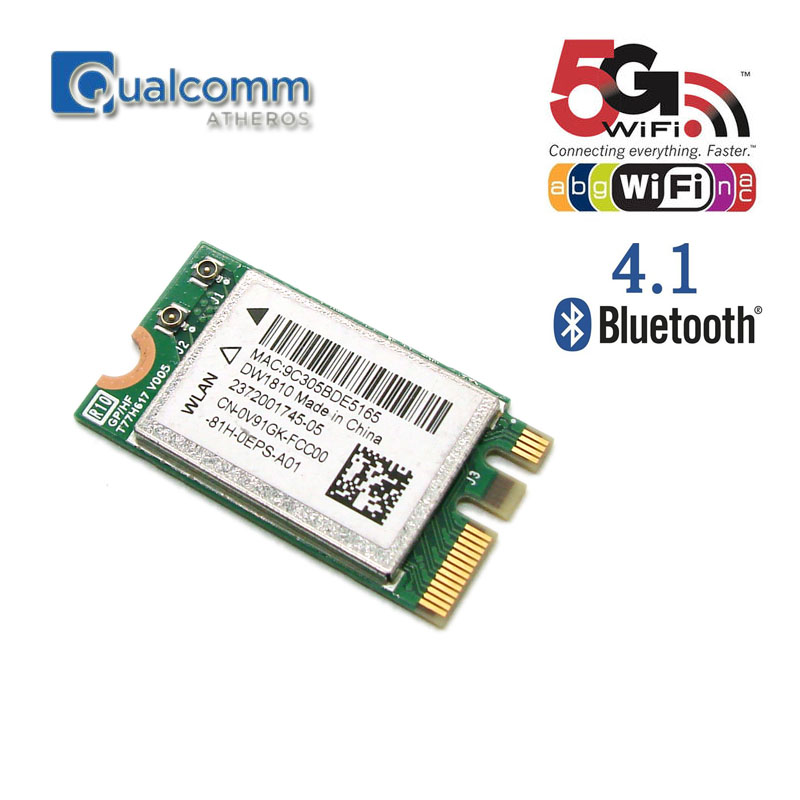

- 型号：QCNFA435
- 支持协议：802.11A/G/N,AC
- 最快连接速率：433Mbps
- 支持频率:2.4G/5G
- 接口规格M.2 1630(NGFF)
- 外形尺寸：16X30MM
- 购买
| ATTRIBUTE | SPECIFICATION |
|---|---|
|
Host interface |
M.2 2230 form factor (WiFi– PCIe, Bluetooth – USB) |
|
Network standard |
802.11a, 802.11b, 802.11g, 802.11n and 802.11ac |
| 11ac Wave2 feature | MU-MIMO RX |
|
Wi-Fi Alliance Certifications |
802.11a, 802.11b, 802.11g, WPA, WPA2, WMM, 11ac, Wifi-Direct, WMM-Power Save, WifiProtected Setup, Voice-Personal |
|
Operating Frequency Bands |
2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac) |
| Dual Diversity Antenna Switching | Dual diversity antenna switching for systems designed with main and auxiliary antennas |
|
Data Rate |
802.11ac – Up to 433 Mbps; 802.11n – Up to 150 Mbps; 802.11a/g – Up to 54 Mbps
802.11b – Up to 11 Mbps |
| Receive Sensitivity |
802.11ac: -59 dBm@ 433.3 Mbps 802.11n/a: -65 dBm@ 150 Mbps ; -68 dBm @ 72.2Mbps 802.11g/a: -72 dBm@ 54 Mbps 802.11b: -85 dBm@ 11 Mbps |
|
Security Authentication EAP Methods |
Open, Shared, WPA, WPA-PSK, WPA2, WPA2-PSK EAP-TLS, EAP-TTLS (MSCHAPv2), PEAPv0(EAP-MS-CHAPv2) |
| Client Utility | Native Wi-Fi and Bluetooth Microsoft UI support |
|
Radio On/Off |
Hardware and software on/off disables transmit and receive to comply with aviation in-flight restrictions |
| Roaming | Seamless roaming between 802.11a, 802.11b, 802.11b/g, 802.11n and 802.11ac access points |
| Wake On Wireless | Supported |
| Miracast (WiFi Display) | Supports Miracast (WiFi Display) on Win8.1/10 |
|
Wireless PAN Standard |
Dual-mode Bluetooth™ 4.1, BLE |
|
Bluetooth Data rates |
Up to 3Mbps |
|
Bluetooth Operating Frequency Bands |
2.4GHz |
| Transmission | FHSS (Frequency Hopping Spread Spectrum) |
|
Bluetooth Data Encryption |
128-bit encryption |
| Bluetooth Receive Sensitivity |
‐70dBm@BER≤0.01% (EDR) -100dBm@BER≤30.8% (LE nominal) |
| Temperature |
Operating temperature -10° to +65° C Storage temperature of –40° to +70° C |
| Humidity | Up to 90% |
