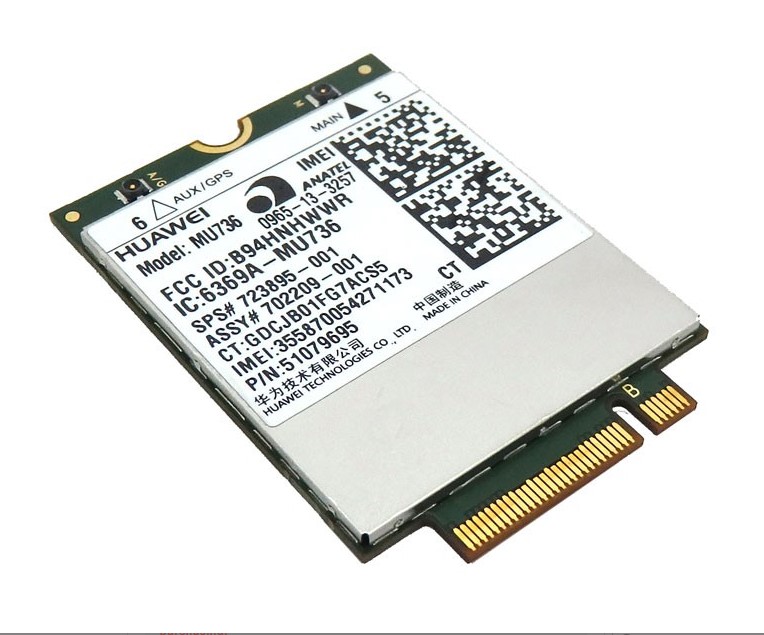

The MU736 is a HSPA+ module with NGFF interface, supporting Penta-band (B1/B2/B4/B5/B8) for worldwide network coverage, low power consumption, GPS, and global carrier certifications, enabling easier and more flexible design and integration into end devices. In addition, the MU736 supports all NGFF features to optimize performance, power consumption, and usability.
MU736 is an ideal choice for PC OEMs and ODMs to use in long battery life, thin form factor devices such as Ultrabooks and tablets requiring best in class cellular platform KPIs (e.g. performance, size, and current consumption).
|
|
 |
|
|
M.2 |
|
|
Penta-band WCDMA/HSPA/HSPA+ : 2100/1900/900/850/AWS MHz Quad-band EDGE/ GPRS/GSM: 1900/1800/900/850 MHz |
|
|
WCDMA PS: UL (384 kbps) / DL (384 kbps) UL/DL HSPA: UL (5.76 Mbps)/ DL (7.2 Mbps) UL/DL HSPA+: UL (5.76 Mbps)/ DL (21Mbps) GPRS/EDGE: Multi-slot Class 33, Class B |
|
|
Antenna interfaces x 2 M.2 Socket 2 USB 2.0 interface high speed Power supply UICC interface |
|
|
Supply voltage range: 3.135V~4.4V (3.3 V recommended) |
|
|
/ |
|
|
Normal operation: – 10°C to +55°C Extended operation: -20°C to +70°C Storage: -40°C to +85°C |
|
|
GPS Standalone, A-GPS |
|
|
SIM Hotswap BodySAR Ultrabook feature support (ACT, WiFi Offload , DPTF) Tunable Antenna Supporting MO and MT Supporting formats of PDU Point-to-point and cell broadcast |
|
|
Windows 7 / Windows 8 / Android 4.0 or above |
|
|
CE FCC GCF PTCRB CCC NCC RoHS/Halogen free Global operator TA |
