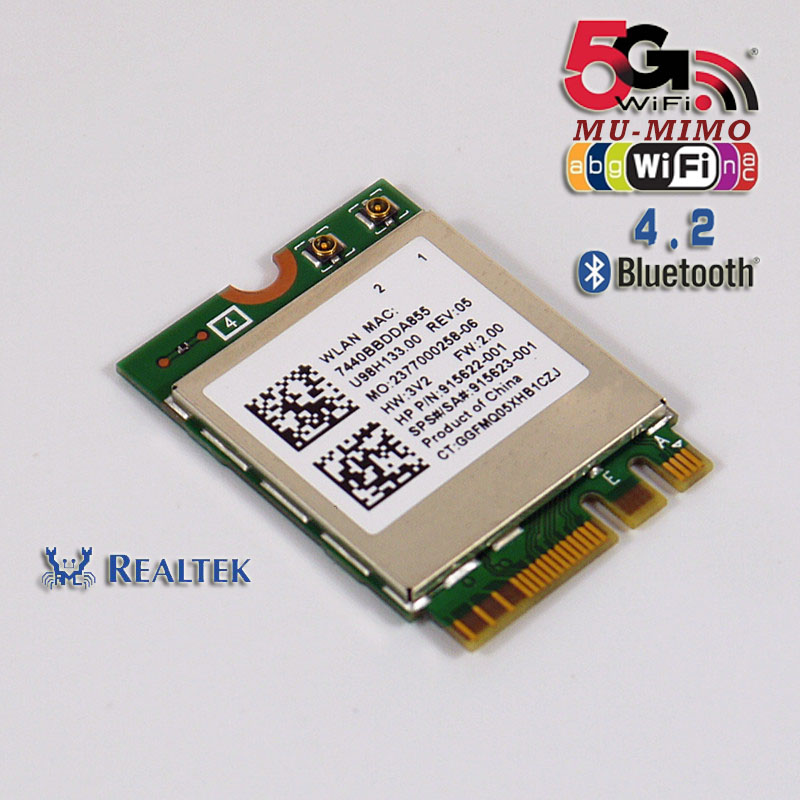

• 型号:RTL8822BE
• 支持协议:802.11A/G/N/AC
• 最快连接速率:867Mbps
• 蓝牙版本:4.2
• 支持MU-MIMO
• 接口规格:M.2 2230
• 外形尺寸:22X30MM
• 购买

详细参数

RTL8822BE

802.11AC/ABGN PCIE WLAN WITH BLUETOOTH 4.2 SINGLE-CHIP CONTROLLER

General Description

The Realtek RTL8822BE-CG is a highly integrated single-chip that supports 2-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) and Wireless LAN (WLAN) PCI Express network interface controller and integrated Bluetooth 2.1/3.0/4.2 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. The RTL8822BE-CG provides a complete solution for a high-performance integrated wireless and Bluetooth device.

Features

General

• TFBGA 6.5×6.5mm package
• 802.11 ac/abgn
• 802.11ac 2×2, Wave-2 compatible with MU-MIMO
• Bluetooth 4.2 (Software only)

Host interface

• PCI Express 1.1 for WLAN controller
• USB2.0 for Bluetooth controller

Applications

• The product is applicable for PC/NB, Set-top box applications
