中兴ME3760 4G LTE广域网模块参数

2021年6月15日 - 3G4GWWAN卡驱动, 技术文献
产品简介

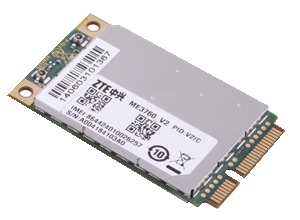

  ME3760 是一款Mini PCI-E接口的LTE 模块,公网版本支持LTE TDD band38(2.6GHz),band39(1.9GHz),band40(2.3GHz),band41(2.5GHz); 向下兼容TD-SCDMA A频段(2.1GHz)和F频段(1.9GHz)以及GSM900MHz,GSM1800MHz. 支持最大50M/150Mbps的理论上下行数据传输速率。专网版本支持1.4G和1.8G。

产品配置

公网版本:
  LTE TDD: band38,band39,band40,band41
  LTE FDD: band1,band3
  TD-SCDMA: band34,band39
  GSM: 900MHz,1800MHz,1900MHz

专网版本:
  LTE TDD: 1.4G, 1.8G

产品应用行业

  通用接口,应用于路由器,超级本,笔记本电脑,CPE,视频监控等领域。

产品优势特点

  ●高速USB 2.0接口
  ●支持短信、数据、电话本功能
  ●支持IPv4,IPv6协议;
  ●支持SIM卡业务
  ●支持分集天线接口
  ●支持LTE双模多频
  ●采用中兴自研芯片平台,价格优于同类芯片平台
  ●3C, 型号核准认证

General Features

● Mini PCI-E Card 52PIN
● Dimensions: 51 mm x 30 mm x 5.05 mm
● Weight: approx. 11grams
● Supply voltage range 3.4V-4.2V
● Rx Diversity
● GSM/GPRS/EDGE Band 8 / Band 3/ Band 2
● TD-LTE
    – Band38 : 2570~2620 MHz (Uplink/Downlink)
    – Band39 : 1880~1920 MHz (Uplink/Downlink)
    – Band40 : 2300~2400 MHz (Uplink/Downlink)
    – Band41 : 2496~2690 MHz (Uplink/Downlink)
● TD-SCDMA
    – Band34(A) : 2010~2025 MHz (Uplink/Downlink)
    – Band39(F) : 1880~1920 MHz (Uplink/Downlink)

Electrical & Sensitivity

● Transmit Power:
    –TD-LTE Band38 +23dBm(Power class 3 )
    –TD-LTE Band39 +23dBm(Power class 3 )
    –TD-LTE Band40 +23dBm(Power class 3 )
    –TD-LTE Band41 +23dBm(Power class 3 )
    –TD-SCDMA Band34 +24dBm(Power class 2 )
    –TD-SCDMA Band39 +24dBm(Power class 2 )
● Power Consumption:
    –Average: 2.2W
    –Maximum: 3.6W

Environmental

● Operation temperature: -20°C to +60°C
● Storage temperature: -40°C to +85°C
● Humidity: 5%~ 95%

Data Features

● TD-SCDMA/HSDPA : 2.8Mbps
● TD-SCDMA/HSUPA : 2.2Mbps
● TD-LTE : 50M/150Mbps(Uplink/Downlink)
● TD-LTE Bandwidth Supported : 5M,10M,15M,20M
● TD-SCDMA Protocol Supported: Rel 9
● LTE Protocol Supported : Rel 9
● TCP/IP Protocol Supported : IPv4,IPv6,IPv4/IPv6 Dual Stack

SMS Features

● Support Text and PDU mode
● Point to point MO and MT
● SMS Status Report SMS centre address setting
● Management of SMS: read, write, send, receive, delete, storage status, SMS list, new SMS alert

Interfaces

● USB 2.0 High speed interface
● SIM card interface (1.8/3.0V DC)
● UART interface
● RF Interface (Main and Aux antenna connector)
● Power-on /Power-off
● LED Interface
● Reset

Software Features

● NDIS
● ECM
● SMS
● Phonebook
● Cell ID Lock
● Control Via AT Commands

Applications

● CPE (Custom Premise Equipment)
● MiFi(My wiFi) ZiFi
● HD Video Surveillance
● Industrial Control

Driver & Tools

● Improved power-saving mode
● Windows(32/64):
    –Windows XP
    –Windows Vista
    –Windows 7
    –Windows 8
● Linux
    –Ubuntu (13.04/ 12.10/12.04)
    –Fedora(17/18/19)
● MAC 10.5/10.6/10.7/10.8

ME3760_V2 公网模块硬件开发指导手册
